3 Axle 80 Ton Front Loader Low Bed Trailer

Front Loader Low Bed Trailer:

SINOTRUCKSenegal's front loaders are manufactured in standard capacities of 50 Ton, 60 Ton, 80 Ton, and 120/150 Ton. All models are available in various lengths and axle configurations to accommodate your hauling needs. Furthermore, SINOTRUCKSenegal offers popular front loader low bed options that include easy to use aluminum slideouts, outriggers, full width aluminum top deck, lift axles, & flip axles to accommodate your large and oversized equipment.

Low Prices of Front Loader Low Bed Trailer for Sale in Senegal Touba

Low Prices of Front Loader Low Bed Trailer for Sale in Senegal Touba

Low Prices of Front Loader Low Bed Trailer for Sale in Senegal Touba

Specification of front loader low bed:

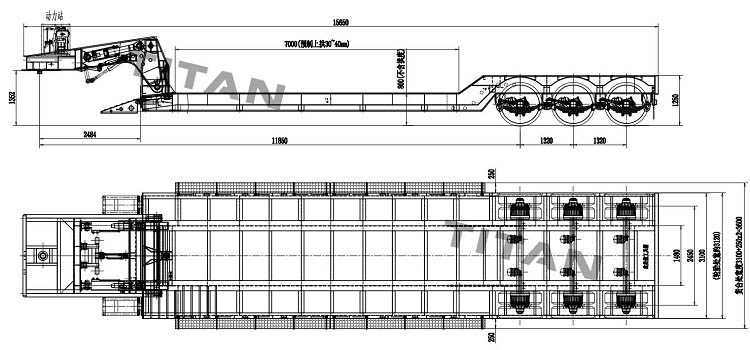

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 13T/16T, FUWA / BPW / SINOTRUCKSenegal Brand

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

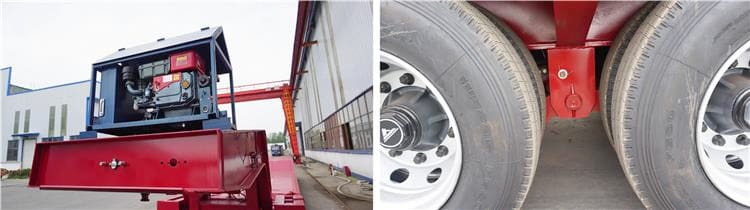

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

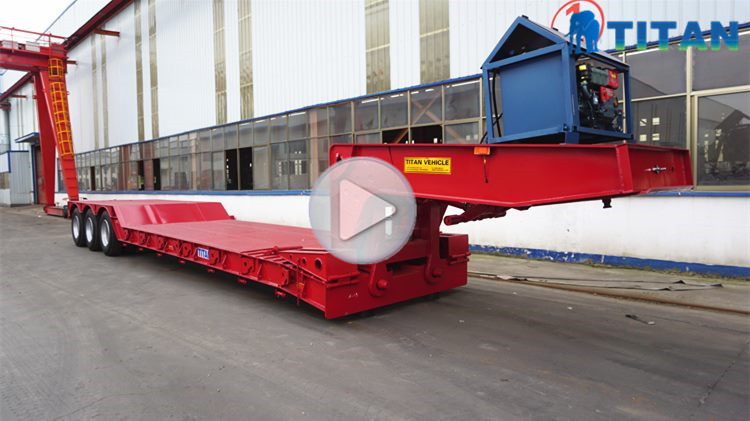

Through the video, you can know different types of 3 axle front loader low bed, front loader, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
