The 120 ton detachable gooseneck trailer frame is similar to the semi trailer body frame, and both are symmetrical with respect to the longitudinal vertical center plane. And indirectly contact with the ground (supported by the ground).
Detachable gooseneck lowboy trailer on our online store offer a smooth behind the wheel experience when hauling intense loads. Since these trailers attach to the rear axle area of towing vehicles, this configuration promotes better weight distribution during transit. Gooseneck trailers give you the opportunity to make narrow turns, stay balanced when driving on uneven terrains and carry heavier loads.

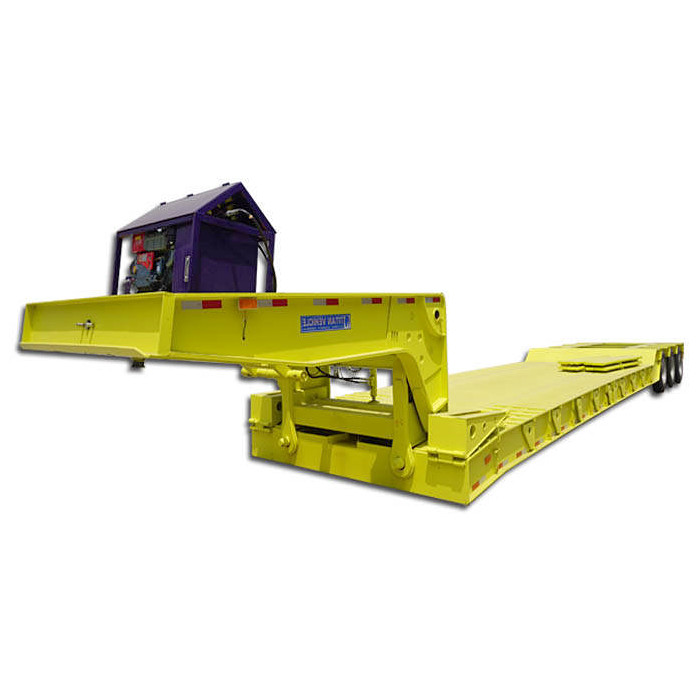

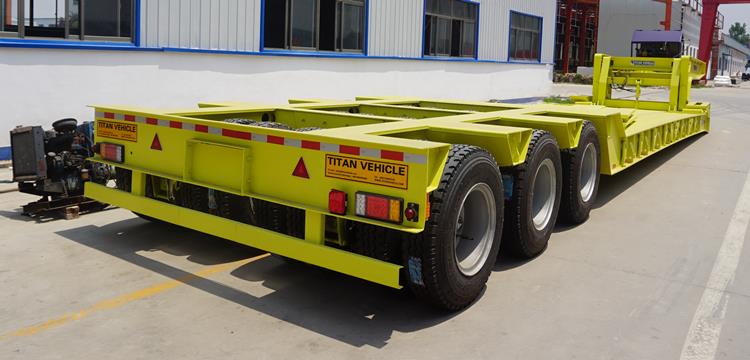

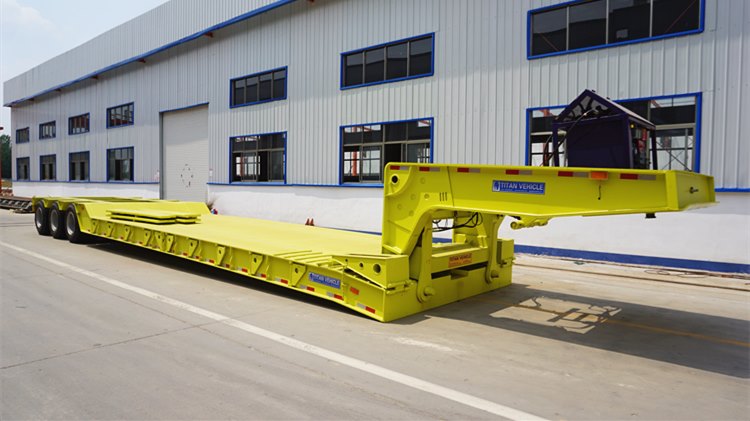

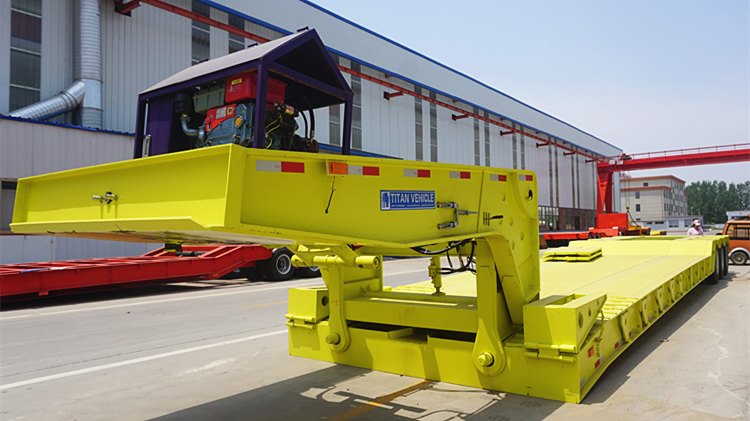

3 Axles 120 Ton Detachable gooseneck Trailers for Sale in Senegal Senegal Ziguinchor
3 Axles 120 Ton Detachable gooseneck Trailers for Sale in Senegal Senegal Ziguinchor
3 Axles 120 Ton Detachable gooseneck Trailers for Sale in Senegal Senegal Ziguinchor

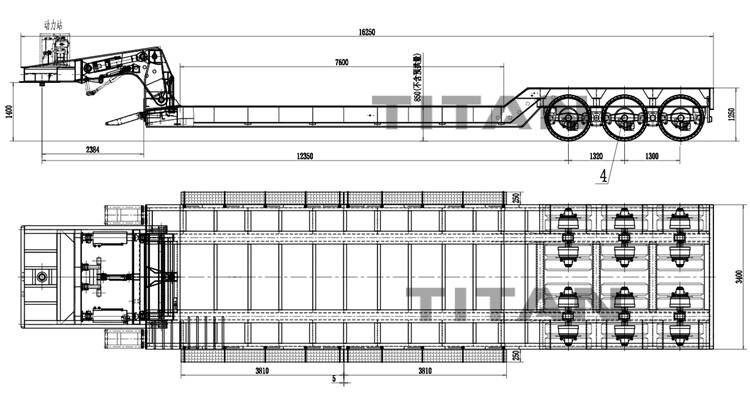

Overall dimension: 17000mm * 3000mm *2500mm
Loading capacity(T): 120-150T
Axle: 3 line 6 axle
Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set

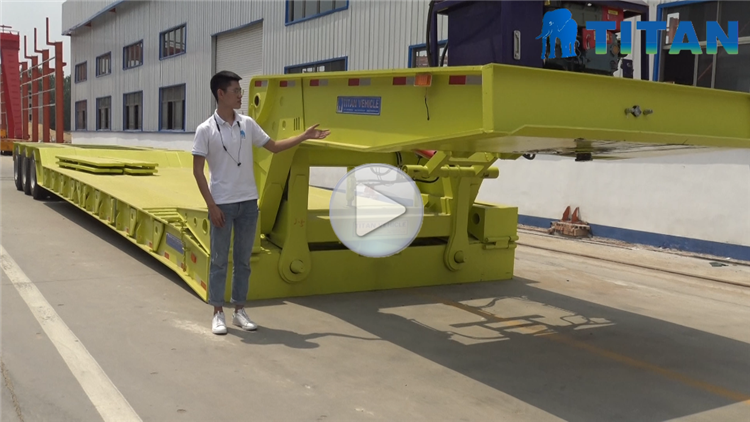

Through the video, you can learn more about the detachable gooseneck , detachable gooseneck trailers for sale , detachable gooseneck semi trailer etc.
Welcome to leave your inquiry!
We will provide more details, price, catalog, drawing, videos for you!
|
