100 Ton Lowboy Gooseneck Trailer

100 Ton Lowboy Gooseneck Trailer

27500 USD

The lowboy gooseneck trailer relates to a hinged frame assembly ideally used for connecting a trailer of the low-bed type to a tractor. This type of lowboy trailer has been widely accepted in the transportation of heavy equipment such as power shovels, cranes and tractors.

SKU: 100 Ton Lowboy Gooseneck Trailer
MPN: TITAN9706006
Brand: SINOTRUCKSenegal

100 Ton Lowboy Gooseneck Trailer Description:

The 100T lowboy gooseneck trailer is a simplified low-bed trailer type for commercial usage. Despite being of great use in solving many sophisticated issues, the previous gooseneck trailer designs still had issues with the connecting assembly that was found to be complex. As a result, the lowboy gooseneck trailer for sale was designed to save space and make use of lighter units through a hinged frame assembly.

How Much is Used 60T Lowboy Gooseneck Trailer for Sale in Ghana

100 Ton Lowboy Gooseneck Trailer for Sale in Senegal Dakar

How Much is Used 60T Lowboy Gooseneck Trailer for Sale in Ghana

100 Ton Lowboy Gooseneck Trailer for Sale in Senegal Dakar

How Much is Used 60T Lowboy Gooseneck Trailer for Sale in Ghana

100 Ton Lowboy Gooseneck Trailer for Sale in Senegal Dakar



Specification of 100 Ton Lowboy Gooseneck Trailer:

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 3 axle

Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

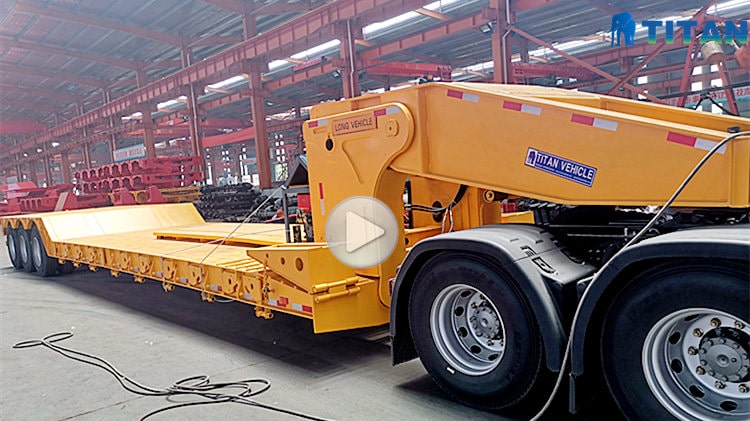

Through the video, you can know more details of 100T Lowboy Gooseneck Trailer , etc.
