The flat deck trailer provides a versatile and efficient option for moving both standard-sized containers and large quantities of bulk cargo. Its strong load-bearing capacity and adaptable design make a popular choice for customers managing a wide range of transportation needs.
The flat deck trailer for sale is designed to accommodate both 20-foot and 40-foot containers, making ideal for efficient transport between ports and inland locations. The tri axle flat deck trailer for sale are engineered with structural balance in mind. When loaded, the weight is evenly distributed across the frame, minimizing concentrated stress points and reducing the chances of long term structural deformation or fatigue.
Dimension: 12500mm*2500mm*1630mm
Loading capacity: 60 ton
Side Beam: 160mm high
Axles: 3 axles, TITAN brand, 13 ton
Tire: 11R22.5, 12 units
Suspension: mechanical suspension
Leaf Spring:10 layers
Bumper: 4mm thickened bumper
Landing Gear: 28 ton, JOST brand
Lamp: LED lamp with anti-theft net

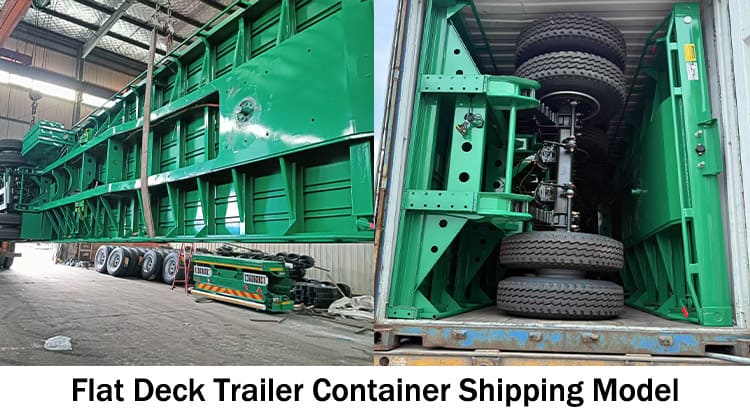

Before these 40 foot flat deck trailers are delivered, each unit undergoes thorough waterproof treatment to ensure durability during sea shipping. A protective wax layer is first applied to the surface of the flat deck trailer body which is followed by a complete waterproof cover, which offers dual-layer defense against seawater corrosion and humid salt air, conditions frequently encountered during maritime transport. Depending on buyer preferences, the tri axle flat deck trailer for sale can be transported via container shipment or roll-on/roll-off (RoRo) vessels.
At the heart of the flat deck trailer for sale strength is the main beam, which is made of Q355 low-carbon, high-strength alloy steel. The material boosts the 40 foot flat deck trailer capacity to endure heavy duty loading. The key joints and frame components are welded using automatic submerged arc welding, a process that ensures deep penetration and uniform welds that not only improves structural integrity but also extends the flat deck trailer life span under demanding usage.
Additional reinforcement is applied to high-stress zones, such as the gooseneck area. A double-layered steel plate is used in these sections to further increase the load-bearing ability. The structural enhancement is especially valuable when transporting bulky or concentrated cargo, as prevents bending or warping under pressure.
Surface finishing is another aspect where attention to detail is evident. The tri axle flat deck trailer for sale is treated with a powder coating followed by a high-temperature baking paint process. Though the method involves higher costs compared to standard painting, it offers better resistance to scratching, sun fading, and peeling. The treatment reduces the need for frequent repainting, thereby lowering long term maintenance costs.
The flat deck trailer for sale features an open deck platform, which greatly simplifies the loading and unloading of different cargo types. The flexibility is particularly useful in coastal regions like Senegal, where diverse freight conditions exist.

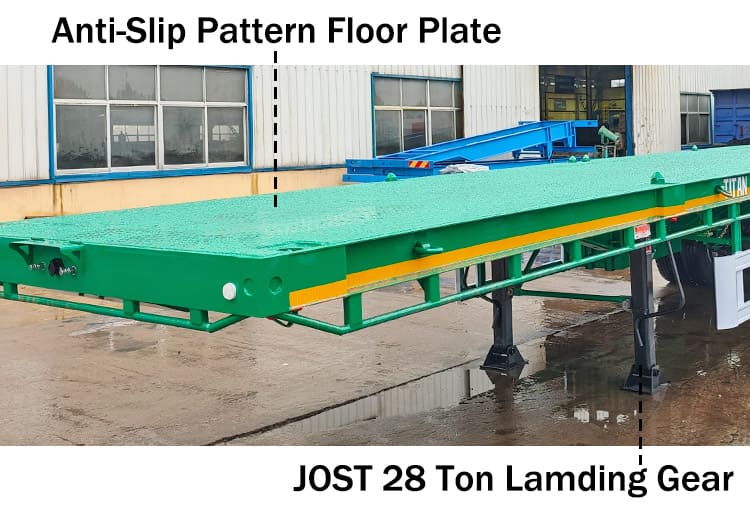

Since the deck is exposed to frequent contact and wear, TITAN uses a patterned steel plate on the surface to provide both durability and better traction. The deck material, 3mm thick high-strength alloy steel, is selected for its excellent load support and resistance to rust, helping the trailer retain its appearance and functionality in moist or saline environments.
Each axle on the 40 foot flat deck trailer is rated to handle 13 tons, providing strong support for high-capacity freight. These axles are built to resist bending and fatigue, and they perform reliably on gravel or uneven roads. The durable construction helps mitigate damage from vibration and prevents failures caused by consistent overloading or repeated impacts.

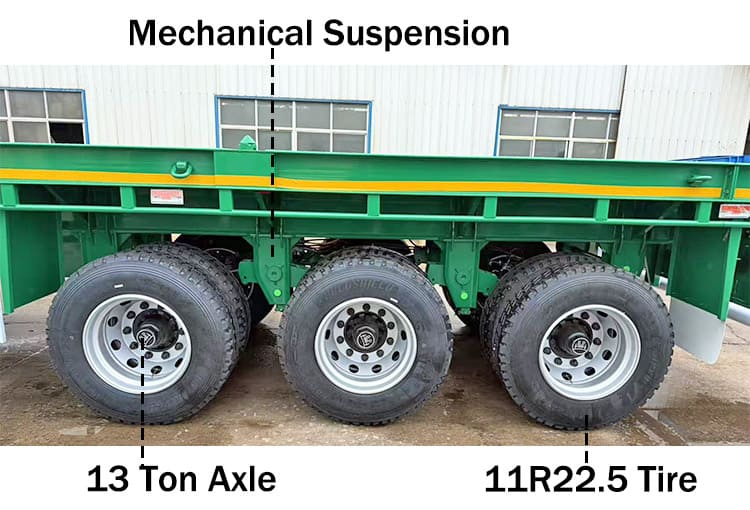

The suspension system also plays a critical role in performance. The 40 foot flat deck trailer uses a mechanical suspension setup with multi-leaf springs and a 70mm central balance pin. Reinforcements on all sides—front, rear, and both flanks—help maintain form and absorb shocks effectively. The robust suspension configuration ensures stability and preserves the structural frame even under the heat and rough terrain commonly found in Senegal.

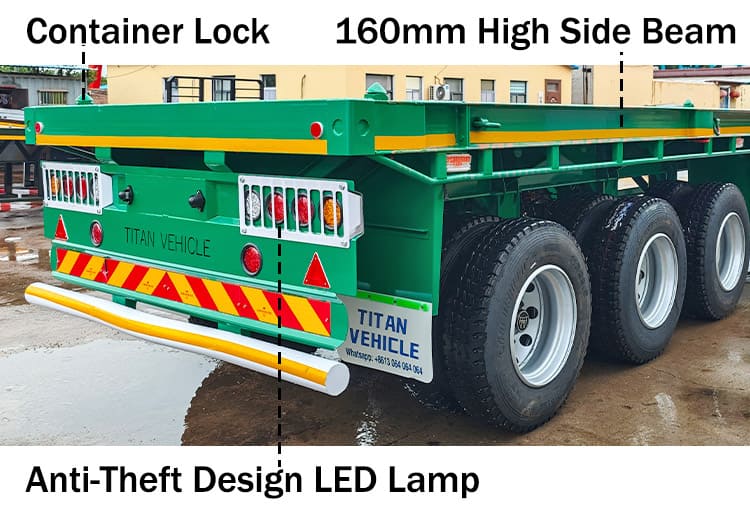

In addition, the lighting system on the tri axle flat deck trailer for sale has been thoughtfully upgraded. It includes a complete set of LED lights, which outperform traditional bulbs in energy use, brightness, and lifespan. These LEDs are resistant to shaking and moisture, ensuring better visibility in Senegal poor weather or during nighttime operations. TITAN also integrates an anti-theft feature into the lighting system, offering an added level of security when the flat deck trailer for sale is parked or in transit.
|
