The flatbed trailer has undergone several structural upgrades to comply with road transport standards and to serve as a dependable logistics solution which are aimed at boosting the adaptability and ensuring consistent performance when carrying both bulk materials and standard container loads.
Designed specifically for efficient road transport, the 40 feet flatbed trailer are optimized for the safe and convenient movement of standardized containers. In addition to container transportation, the flatbed trailer is capable of handling non-containerized bulk cargo, making a vital component in modern logistics.
With the standardized dimensions, high compatibility, and low operational cost, the 40 feet flatbed trailer plays an essential role in multimodal transportation systems, supporting fast loading and unloading while offering multiple transport modes.
2025 New 40 Feet Flatbed Trailers Prices for Sale in Senegal
2025 New 40 Feet Flatbed Trailers Prices for Sale in Senegal
Overall Dimension: 12500mm*2500mm*1460mm
Load Capacity: 60 ton
Floor Plate: 3mm thick pattern plate
Side Beam: 160mm high
Trailer Feature: fuel tank
Tank Capacity(liter): 600 L
Landing Gear: 28 ton
Axles: 3 axles, 13ton, TITAN brand
Tire: 12 units, 12R22.5
Bumper: 4mm thick
Leaf Spring: 10 layers
Suspension: mechanical suspension
Lamp: LED Lamp with anti theft design
The new flatbed trailers for sale adopts an open-floor design, which simplifies loading and unloading tasks and gives users greater operational flexibility. The layout helps facilitate the handling of different cargo types and improves time efficiency during loading operations. The simplified platform structure enhances adaptability for different haulage requirements, allowing operators to manage various load configurations with greater ease.
Constructed from Q355 low-carbon, high-strength alloy steel, the flatbed trailer prices main frame delivers solid performance even under heavy loads. The material choice allows the 40 feet flatbed trailer to carry up to 60 tons, making well-suited for transporting high-volume goods.

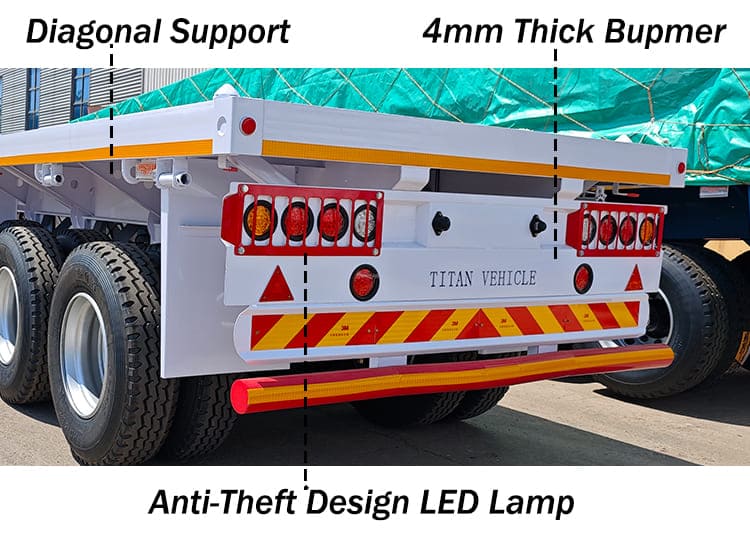

The trailer features a cross beam that integrates vertically with the main longitudinal beam, forming a strong foundational skeleton. Diagonal bracing between the structural elements ensures that force is distributed evenly throughout the frame, helping to maintain floor flatness and prevent warping or distortion during operation.

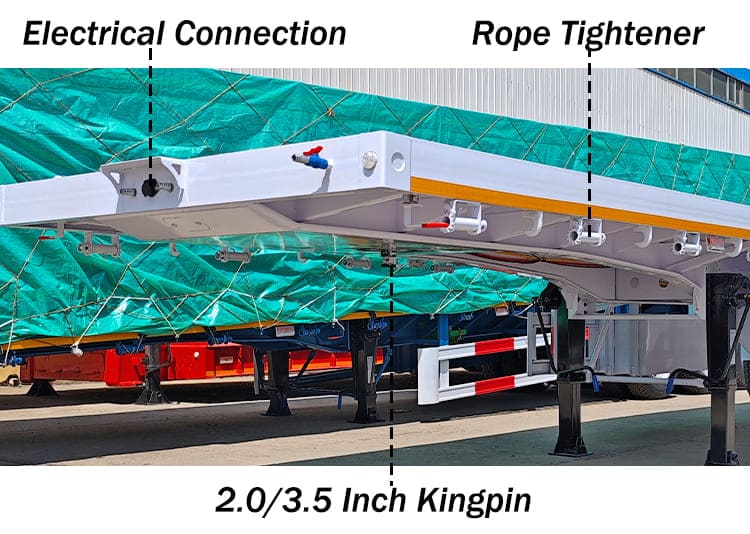

Cargo security during transport is supported by rope tightener devices, which are essential for fastening goods onto the flatbed trailer prices. The devices are simple to use and contribute significantly to maintaining cargo stability, especially during sharp turns or sudden stops. The system not only improves transportation safety but also supports smoother and more efficient loading, unloading, and overall vehicle handling.

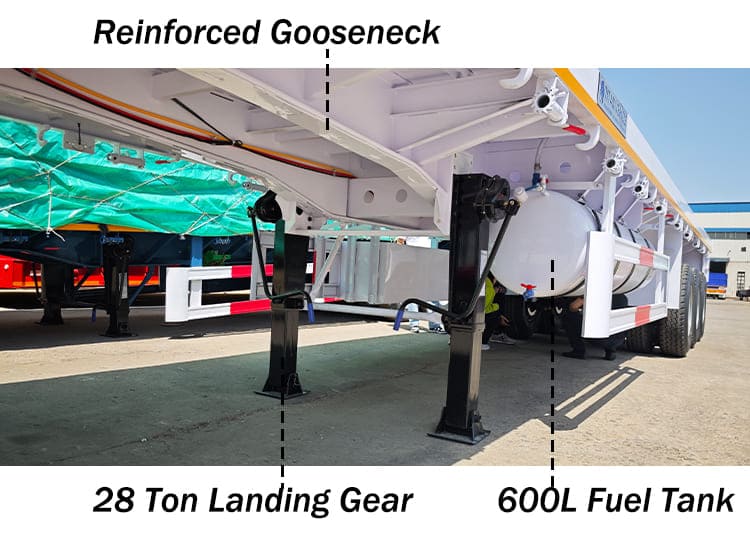

To meet the long-haul needs typical in Senegal, the flatbed trailer is equipped with a large fuel tank. The built-in tank allows the new flatbed trailers for sale to cover long distances without frequent refueling, thus improving overall transport efficiency.
Manufactured from high-strength steel, the tank is built to withstand high ambient temperatures, ensuring that fuel remains securely stored and operations remain uninterrupted even in extreme conditions.
The flatbed trailer is fitted with adjustable container locks, allowing operators to secure containers of different sizes, such as 20-foot and 40-foot units. The frame is engineered to enhance both the overall strength and the ability to handle dynamic loads. The optimized structure improves the flatbed trailer prices durability and load-bearing performance, thereby extending the service life.
The traction plate, which connects the new flatbed trailers for sale to the tractor, is crafted from a single steel plate with a thickness of 12mm. The one-piece design ensures uniform force distribution and reliable towing strength. The solid construction transmits traction efficiently across the trailer frame.
Paired with multiple shock-absorbing features, the system of 40 feet flatbed trailer reduces damage from sudden impacts and helps maintain structural integrity in the event of extreme movement, minimizing the risk of mechanical separation.
Customers in Senegal purchasing a flatbed trailer of TITAN can choose between container shipment and roll-on/roll-off (ro-ro) shipping methods, depending on preferences and logistical needs. Before any unit is dispatched, TITAN applies a strict packaging protocol.
Each 40 feet flatbed trailer is first coated with a protective wax layer to guard against corrosion. Afterward, a waterproof tarpaulin is wrapped around the unit to shield from moisture and sea salt exposure during overseas shipping. The multi-layer protection ensures that the new flatbed trailers for sale reaches the destination in optimal condition, preserving both appearance and functionality.
|
