100 Ton Detachable Gooseneck Lowboy Trailer is also very extensive, suitable for the transportation of various mechanical equipment, large objects, road construction equipment, large tanks, power station equipment and various steel materials.

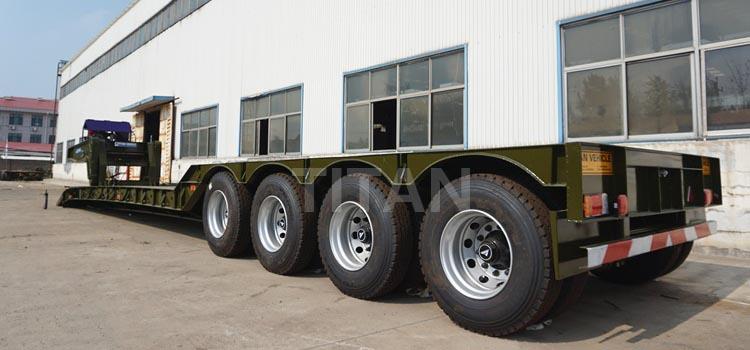

SINOTRUCKSenegal 100 Ton Detachable Gooseneck Lowboy Trailer, detachable trailer, detach trailer for sale for transport excavator and construction equipment, large machinery transportation. With our increased cylinder stroke you can raise the trailer chassis as high as possible off the ground depending on the truck fifth wheel height. We can make the 2/3/4 axles lowboy trailers, with the capacity of 60/80/100/120 ton.
Dimension: 16500mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 4 axles, 13T/16T, FUWA / BPW / SINOTRUCKSenegal Brand
Rim: 8.0-20 or 900*22.5
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
1. Strong carrying capacity
SINOTRUCKSenegal detachable gooseneck lowboy trailer main beam of SINOTRUCKSenegal is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. SINOTRUCKSenegal mechanical detach lowboy gooseneck trailer for sale adopts reinforced the gooseneck and upper and lower plate by double layer.
2. Low center of gravity and good stability
Due to the low ground clearance and low longitudinal beam height of detachable gooseneck lowboy trailer, the load-bearing surface is 300-400mm lower than that of the normal concave-center detachable gooseneck trailer for sale, thereby effectively reducing the height of the center of gravity of the loaded goods and improving the stability during transportation.
SINOTRUCKSenegal detachable gooseneck lowboy trailer for sale bottom plate, Other suppliers usually use 3 or 4 mm bottom plate, But SINOTRUCKSenegal mechanical detach lowboy equipment trailers adopt 5 mm thick bottom plate, It’s more durable and won’t be deformed.
Through the video, you can know the details of detachable gooseneck lowboy trailer, detachable trailer, detach trailer for sale, etc.
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
|
