40 Ton Side Lifter Trailer

Product Description:

40 ton side lifter trailer is a container-specific loading and unloading vehicle, which is used in container terminals and transfer yards. The role of 40ft side lifter trailer is to realize container handling.

As a convenient and efficient container loading and unloading vehicle, the container side lifter trailer can load containers by itself, and it can also load and unload containers for other container carriers (such as flatbed trailer and skeletal trailer).

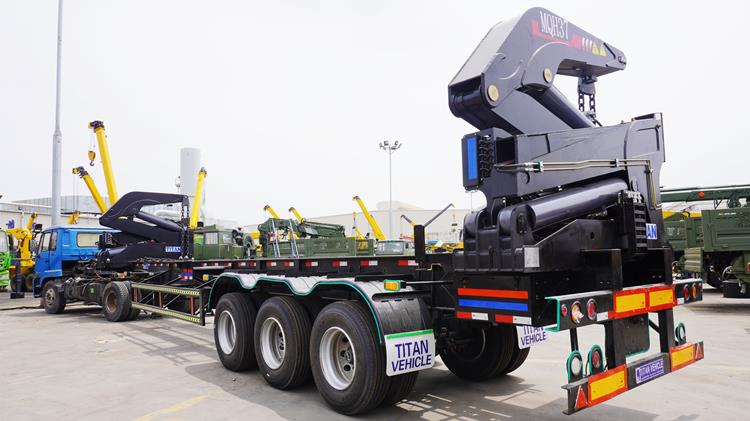

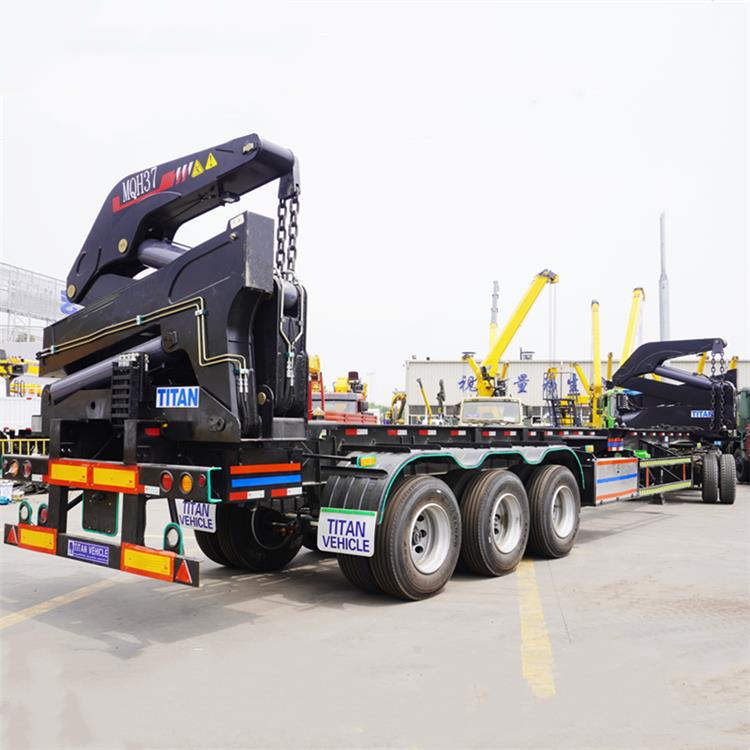

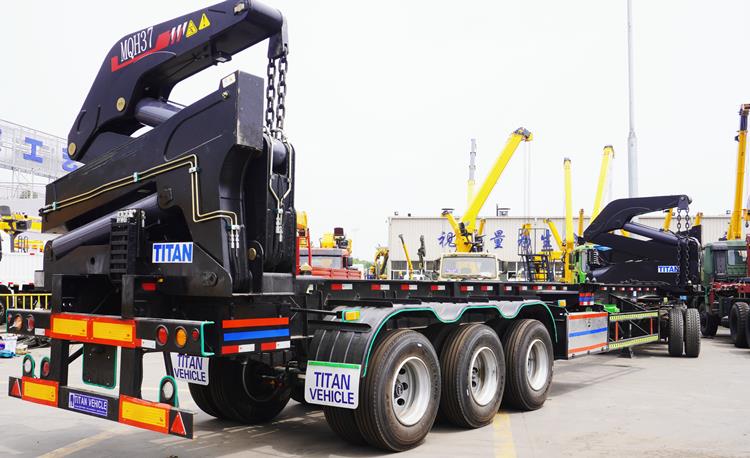

40 Ton Side Lifter Trailer for 20/40 FT Container Loading

40 Ton Side Lifter Trailer for 20/40 FT Container Loading

Specification:

Max. lifting capacity: 40 Ton Side Lifter Trailer

Function: Load 20/40ft container trailer

Trailer Chassis: 14100mm * 2500mm *4100mm

Axles: 3 axles

Tire: 12 units

Kingpin: 90#

Landing gear: JOST

Power source： Power take off/Diesel APU

Operation: Wireless remote control and Manual operation

Advantage:

1. Timesaving and improving efficiency: SINOTRUCKSenegal 37 ton container loader trailer can be productive all day, enabling loading, unloading and transporting containers by itself easily.

2. Flexible solutions: With the SINOTRUCKSenegal 40 Foot Side Lifter Trailer container trailer, you get closer and can lift between trailers safely and with high precision.

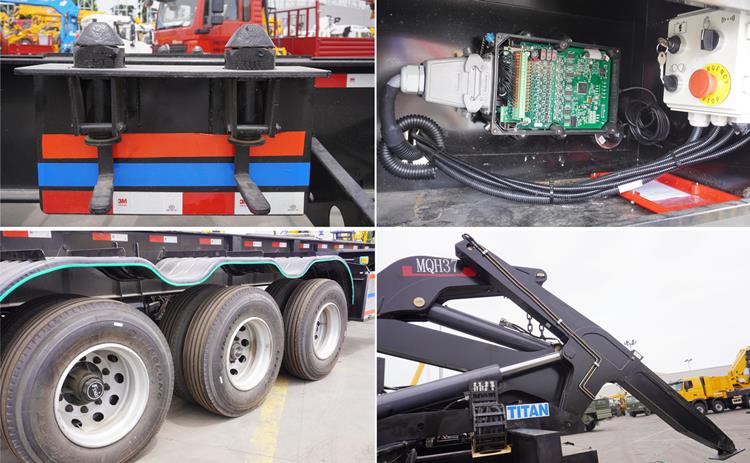

3. Famous WABCO braking valve, JOST landing gear for the main chassis container skeleton trailer

4. Famous NBB Germany Remote Control, easy to operate

5. SINOTRUCKSenegal 40 Foot Side Lifter Trailer adopts wireless remote control technology, loading container just takes 10 mins.

 Service:

• Detailed operating instructions  also, we have the Video Explanation

• Overseas engineer to provide technical service

• You can reach us at any time and get a rapid response

•  Competent technical service,

• Rapid and safe deliveries of spare parts

Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!
