The container trailer for sale is specifically engineered for transporting containers, offering enhanced carrying capacity and strong compatibility with standard container sizes. With a maximum load-bearing capacity of up to 60 tons, the 20 ft container trailer delivers efficient and reliable performance for heavy duty logistics.
TITAN skeletal container trailer is favored by many customers in Senegal due to its solid construction and impressive load performance. The tri-axle design provides excellent load distribution and operational stability, especially when handling large, heavy containers over long distances. The chassis is optimized for seamless port-to-land transfers and suits a wide range of intermodal logistics scenarios.

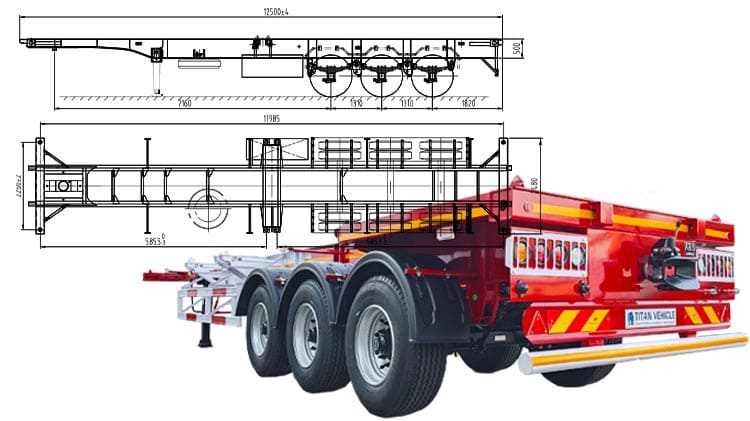

Overall Dimension: 12500mm*2500mm*1500mm
Axles: 3 axles, 13ton, TITAN brand
Tire: 12 units
Trailer Feature: ABS system
Load Capacity: 60 ton
Landing Gear: 28 ton
Bumper: 4mm thick

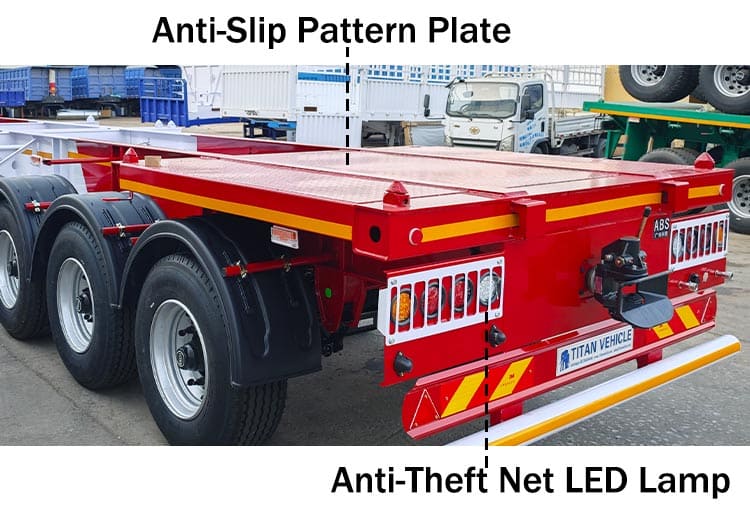

Lamp: LED Lamp with anti-theft net
Suspension: mechanical suspension
Leaf Spring: 10 layers

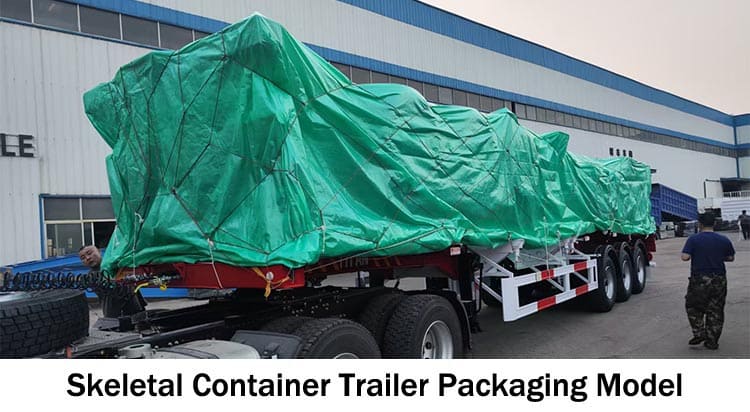

Before delivery, every TITAN 20 ft container trailer undergoes careful anti-corrosion treatment to ensure reaches the customer in top condition. A layer of protective wax is applied to the entire surface, followed by a waterproof tarp wrap. The two-layer protection guards against seawater corrosion and salt spray, which is especially important for trailers shipped by sea. Depending on logistical needs, customers can choose between container shipment or RORO (Roll-on/Roll-off) shipping methods.
From a visual standpoint, the container trailers is finished, which not only improves visibility on the road but also gives a clean and modern look. To ensure long term durability, the container trailer for sale is treated with powder coating followed by high temperature baking. The surface treatment offers greater resistance to fading, peeling, and environmental damage compared to traditional spray painting. For customers in Senegal, TITAN also provides customization options, allowing to choose different colors to align with corporate branding or personal preferences.

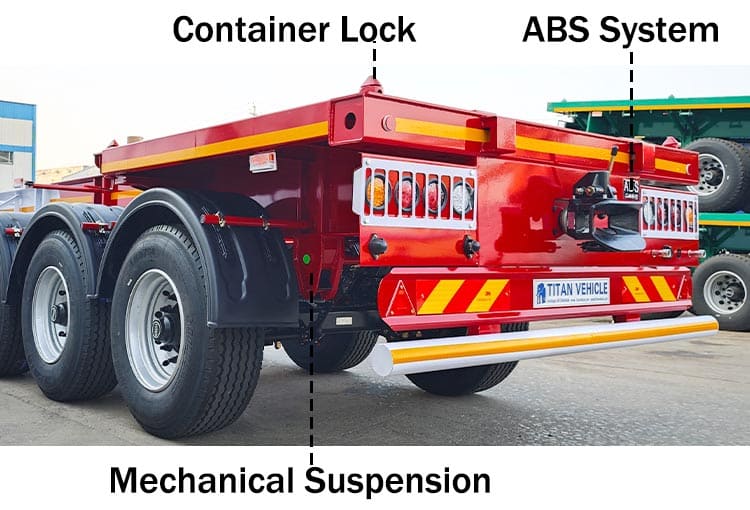

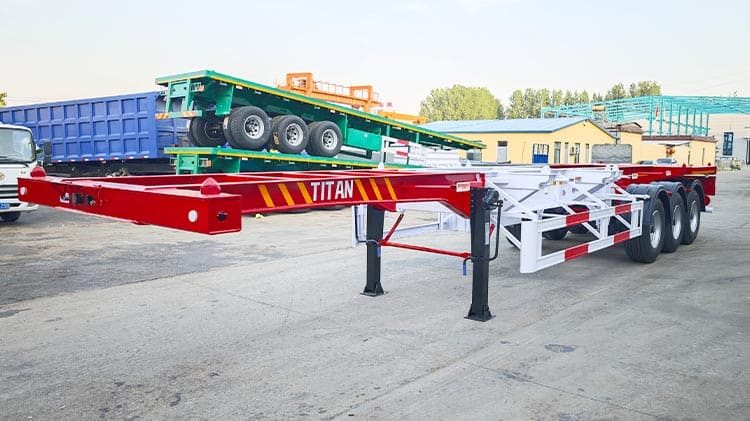

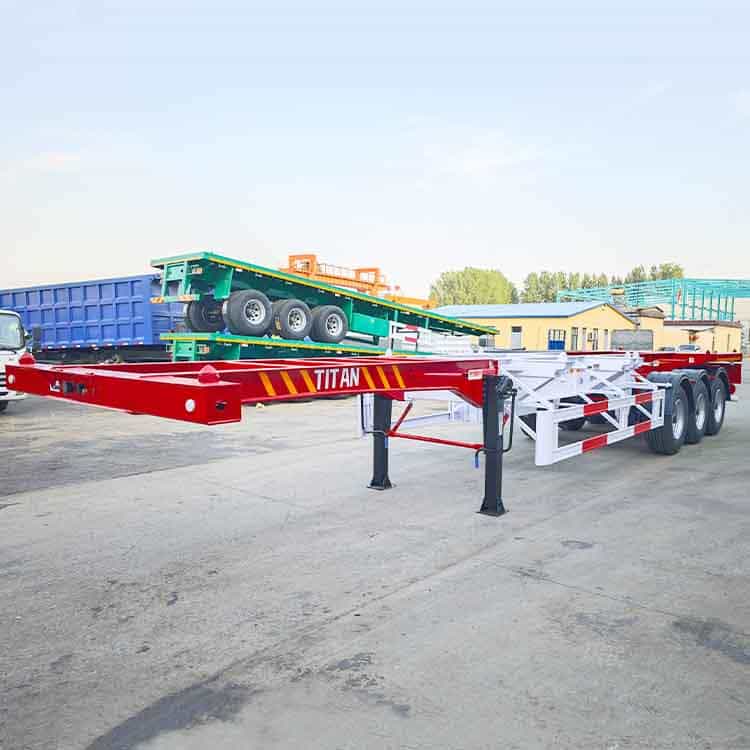

Structurally, the skeletal container trailer adopts an open-frame layout, which simplifies loading and unloading while accommodating both 20-foot and 40-foot containers. There are a total of 12 container locks distributed across the chassis. These locks are precisely positioned to allow compatibility with containers of varying sizes. Once the container is aligned with the locking points, securing becomes quick and straightforward. The setup reduces handling time and increases operational efficiency.
The 20 ft container trailer main beam and cross members form a solid foundation, connected using diagonal bracing to create a highly stable structural frame. The spacing between each brace is kept under 500mm to ensure that the load pressure is evenly distributed across the frame. For enhanced load-bearing capacity, the cross members are constructed using 100mm thickened channel steel, enabling the container trailer for sale to carry higher tonnage without compromising structural integrity. The design approach is particularly suitable for the heavy cargo transport needs of Senegal logistics operators.

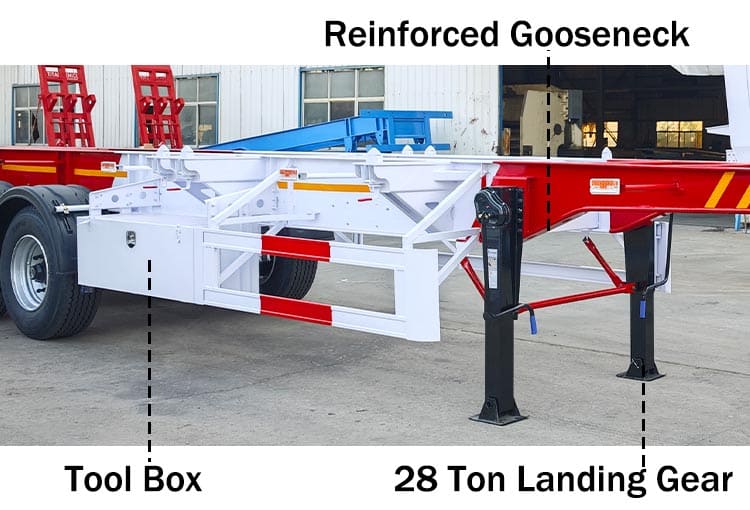

The container trailers landing gear system plays a vital role in daily operation. With a load capacity of 28 tons, the landing gear is suitable for high-load environments, which features a wide base that improves contact with the ground, increasing trailer stability during loading and unloading. The user-friendly design ensures simple and efficient deployment, even for Senegal operators with minimal experience.
Another key safety component is the braking system. The skeletal container trailer is equipped with high capacity 16-ton brake pads that improve braking responsiveness. The pads help prevent wheel lock during sudden stops, which not only protects the tires but also enhances overall safety. The upgraded braking system is particularly effective in shortening the stopping distance, which is a critical factor when navigating Senegal complex road conditions. Additionally, the trailer's air brake system uses durable high pressure rubber hoses, offering improved longevity and reduced maintenance compared to standard pipes.

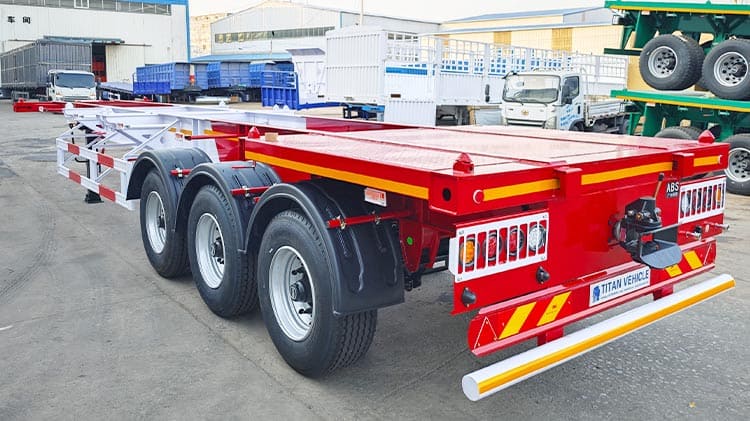

The axle system also supports the 20 ft container trailer heavy duty capability. By employing a three-axle configuration, the load is evenly shared across the container trailer for sale body and wheels which reduces localized stress that can lead to tire blowouts or frame deformation, which are common concerns under high load conditions. The mechanical suspension system works in tandem with the axles to absorb shocks from uneven or rough road surfaces, improving ride stability and extending the lifespan of the skeletal container trailer components.
|
