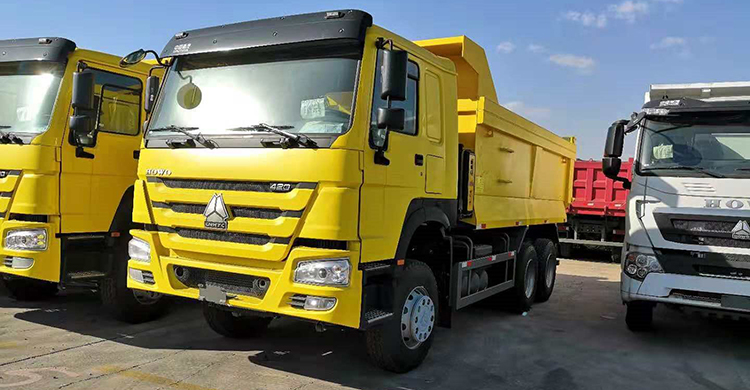

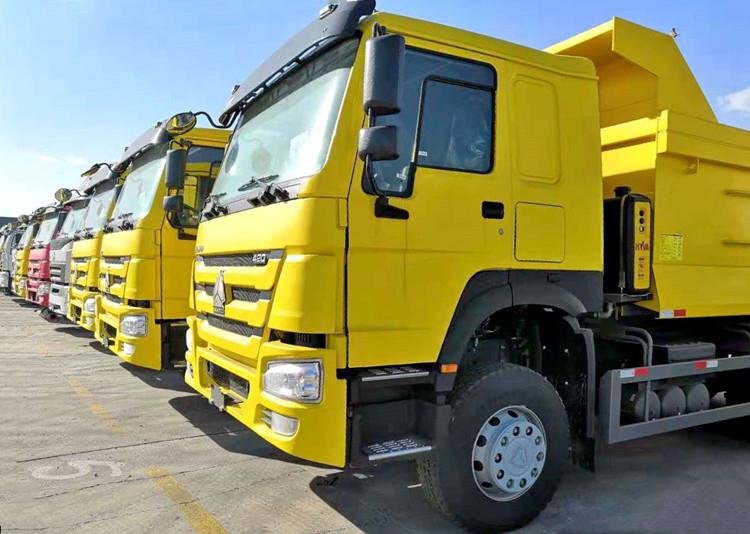

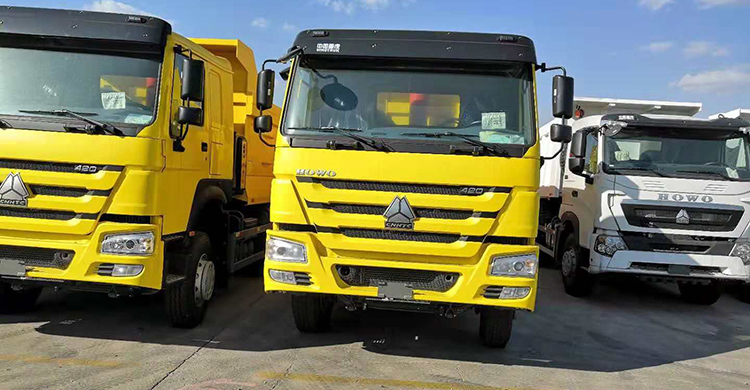

Sinotruk Howo 6X4 Dump Truck for Sale in Senegal

This time, the Senegalese customer saw our model locally, with our company's logo printed on the car, so the customer contacted us and asked about the heavy-duty vehicle model. Our sales manager received him quickly and indicated to the customer that we are the authorized operator of Sinotruk in Senegal. Clients are very interested in referrals from sales managers. Under the suggestion of the sales manager, customers purchased a howo 6x4 dump truck that meets my needs.

Now, the truck is about to be sent from China to the port of Senegal, and it is believed that it will be delivered to customers soon.

Sinotruk Howo 6X4 Dump Truck for Sale in Senegal

1. Structural characteristics of HOWO dump trucks

The characteristic of the dump truck is that its compartment can be tilted - a certain angle, so that the goods in the compartment can be unloaded. The tilting of the carriage is accomplished by the tipping mechanism with the power of the dump truck engine. Since the loading carriage can automatically tip over a certain angle for unloading, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs.

transport machinery. The dump truck consists of four parts: engine, chassis, cab and carriage. The structure of the engine, chassis and cab is the same as that of general trucks. The carriage can roll over backwards or sideways. Lateral overturning is more common, and a few two-way overturning. Cab in front

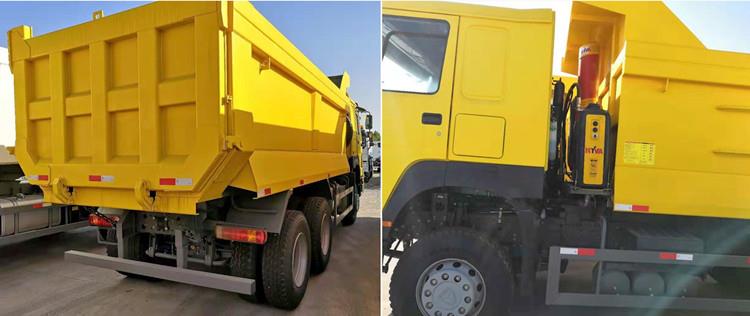

Safety fenders. The hydraulic tilting mechanism of the carriage is composed of a fuel tank, a hydraulic pump, a distribution valve, and a lifting hydraulic cylinder, which push the piston rod to make the carriage tilt. The movement of the piston rod is controlled by the steering system, and the carriage can be stopped at any required tilting position. The carriage is reset using its own gravity and hydraulic control.

Sinotruk Howo 6X4 Dump Truck for Sale in Senegal

2. Advantages and disadvantages of single cylinder and double cylinder:

The single-cylinder straight-top cylinder is expensive, and the stroke of the cylinder is long. Generally, it is a multi-section cylinder. The manufacturing process of the lifting mechanism is relatively simple: single-cylinder compound lift The structure is more complicated, and the assembly process requirements are higher, but the cylinder stroke is small, the structure is simple, and the cost is low. These two forms of lifting mechanism are in better stress condition. The double cylinder is generally in the form of a straight top such as EQ3092, with a simple structure and low cost, but the stress condition is poor.

Sinotruk Howo 6X4 Dump Truck for Sale in Senegal
