80 Ton Hydraulic Low Loader Trailer for Sale in Senegal Dakar

Senegalese customer has ordered low-bed semi-trailers from our company before, TITAN Vehicle is our partner for many years. Customer feels that our products are of good quality and durable. Therefore, this time, the Zimbabwean customer ordered 2 units of 80 ton hydraulic low loader trailer. After negotiation with the sales staff and technicians, various details of the 80 ton hydraulic low loader trailer production, including drawings, painting, etc., were finally determined.

Now, the 80 ton hydraulic low loader trailers has been produced and is about to be packed and sent to the port. It is believed that it will soon be delivered to customers in Senegal.

80 Ton Hydraulic Low Loader Trailer for Sale in Senegal Dakar

1. What is a hydraulic low loader trailer?

First of all, hydraulic low loader trailers are usually used to carry relatively heavy things, such as tractors, buses, special vehicles, etc., as well as rail vehicles, mining machines, forestry machines, and agricultural machines (excavators, loaders, etc.). , pavers, cranes, etc.).

Compared with the container semi-trailer, its center of gravity is relatively low, and its stability and safety are better, so the ability to transport high cargo and pass overhead obstacles is stronger.

2. Possible problems and solutions in the use of  hydraulic low loader trailers

1. The low flatbed vehicle walks obliquely when driving

Hydraulic low loader trailers vehicles walks obliquely mainly because the distance from the center of the traction pin to the corresponding points on both sides of the axle is not equal (the three points are not an isosceles triangle).

80 Ton Hydraulic Low Loader Trailer for Sale in Senegal Dakar

Solution:

1. Park the vehicle on a level road without braking.

2. Take a point on the inner surface of the front side of the inner hub of the front axle, take a point on the left and right sides, and the position is symmetrical.

3. Take the center of the traction pin as the benchmark, measure the distance to the above two points, and require "3mm of L1-L2i. If it is out of tolerance, adjust the front axle live tie rod until the tolerance requirements are met.

4. Before the measurement, check the measured value at the corresponding point of the rear axle hub, requiring 2mm of the old 181-821. If it is out of tolerance, adjust the rear axle live tie rod to make the front and rear axles parallel until the deviation meets the requirements.

80 Ton Hydraulic Low Loader Trailer for Sale in Senegal Dakar

5. Tighten the fastening bolts on the front and rear live tie rods.

6. After adjustment, drive about one kilometer without braking and stop in place, and review the above dimensions. If there is no change, the adjustment is successful.

7. During the adjustment process, the tie rod should be in a working state, that is, when the tie rod is rotated, the bearing of the car moves, and the adjustment of the tie rod is normal.

80 Ton Hydraulic Low Loader Trailer for Sale in Senegal Dakar

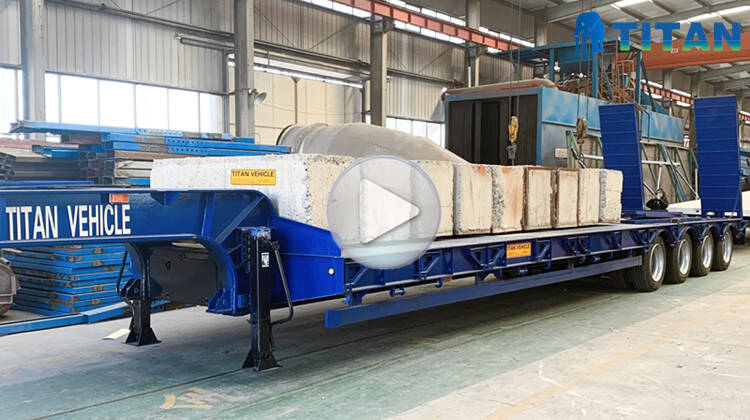

You can download video, you can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder lowbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.
